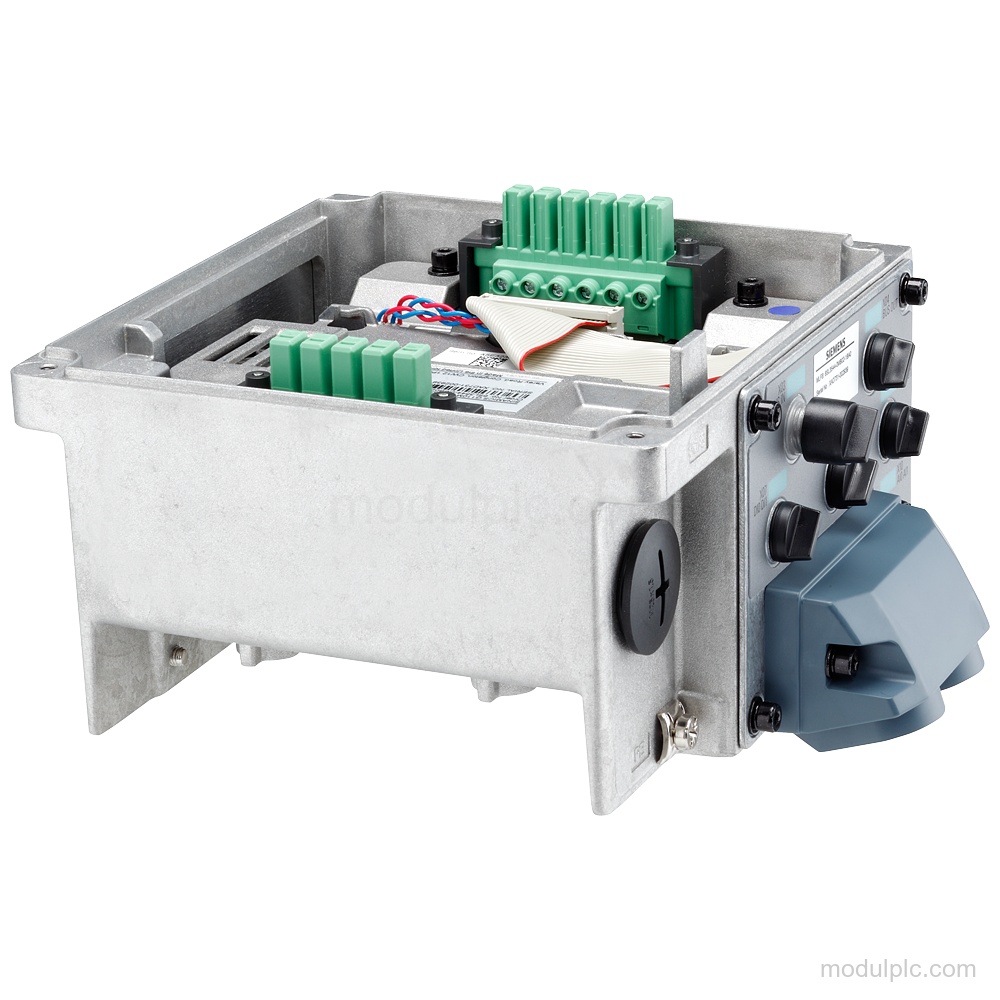

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| I/O configuration | 4 DI, 2 DO, 2 AI |
| Communication | USS/MODBUS |
| Connection | M screw connection |
| Brake and sensor connection | EM brake control, PTC/KTY connection |
| Protection | IP66 |
| Ambient temperature | -10 to +55 °C |
| Exclusion | Without Power Module |
Applications
- EM brake control: Provides EM brake control for the SINAMICS G110M drive component.
- Signal acquisition and output control: Provides 4 DI, 2 DO and 2 AI for signal acquisition and output control.
Key Features
- I/O configuration: 4 DI, 2 DO and 2 AI.
- Communication: USS/MODBUS interface.
- Connection: M screw connection.
- Brake control: EM brake control and PTC/KTY connection.
- Protection and temperature: Degree of protection IP66; ambient temperature -10 to +55 °C.
- Configuration status: Spare part without Power Module; product cancellation.
Frequently Asked Questions
1. What I/O does the 6SL3544-0LB02-1BA0 have?
It has 4 DI, 2 DO and 2 AI.
2. Which communication interface does this Control Unit use?
It uses USS/MODBUS.
3. What connections are provided?
It has an M screw connection and a PTC/KTY connection for EM brake control.
4. Is the Power Module included?
It is without Power Module.
