Product Overview
Technical Summary
| Parameter | Value |
|---|---|

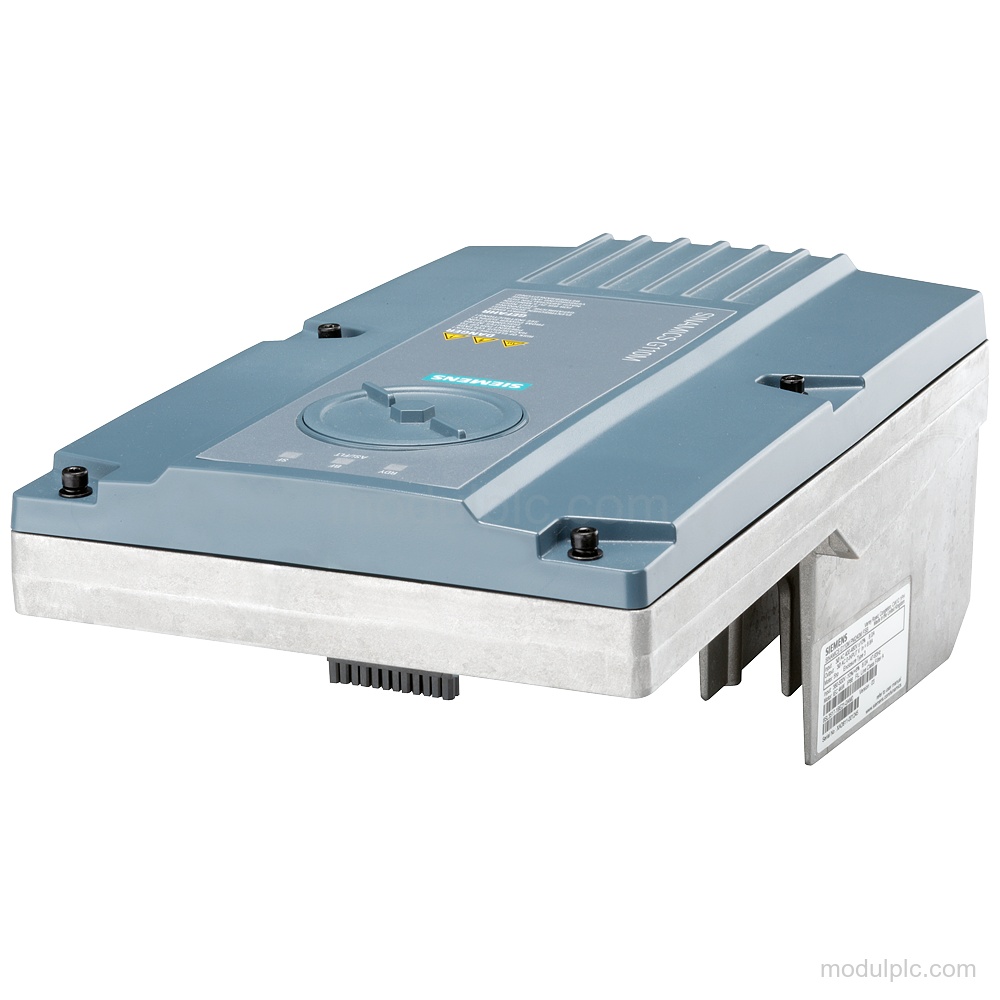

| Product type | SINAMICS G110M Power Module PM240M spare part |
| Control Unit | Without Control Unit |
| Supply | 380-480 V 3AC +10/-10% |
| Frequency | 47-63 Hz |
| High overload | 3 kW at 200% for 3 s, 150% for 57 s, 100% for 240 s |
| Protection | IP65 |
| Filter | Integrated class A filter |
| Memory card slot | SD/MMC |
| Ambient temperature | -10 to +55 °C |
| Product lifecycle | Product cancellation |
Key Features
- Power module and spare part: SINAMICS G110M Power Module PM240M; spare part, without Control Unit.
- Supply and frequency: 380-480 V 3AC +10/-10%; 47-63 Hz.
- High overload: 3 kW at 200% for 3 s, 150% for 57 s, and 100% for 240 s.
- Protection and filter: Integrated class A filter; degree of protection IP65.
- Memory card slot: SD/MMC card slot.
- Ambient temperature and dimensions: Ambient temperature: -10 to +55 °C; dimensions: 135 x 181 x 309 mm (H x W x D).
Frequently Asked Questions
1. What is the 6SL3517-1BE17-7AM0?
It is a SINAMICS G110M Power Module PM240M spare part.
2. What supply does this Power Module use?
Supply is 380-480 V 3AC +10/-10% at 47-63 Hz.
3. What high-overload rating is provided?
The rating is 3 kW at 200% for 3 s, 150% for 57 s, and 100% for 240 s.
4. Is the Control Unit included?
It is without Control Unit.
