Product Overview
Technical Summary
| Parameter | Value |
|---|---|

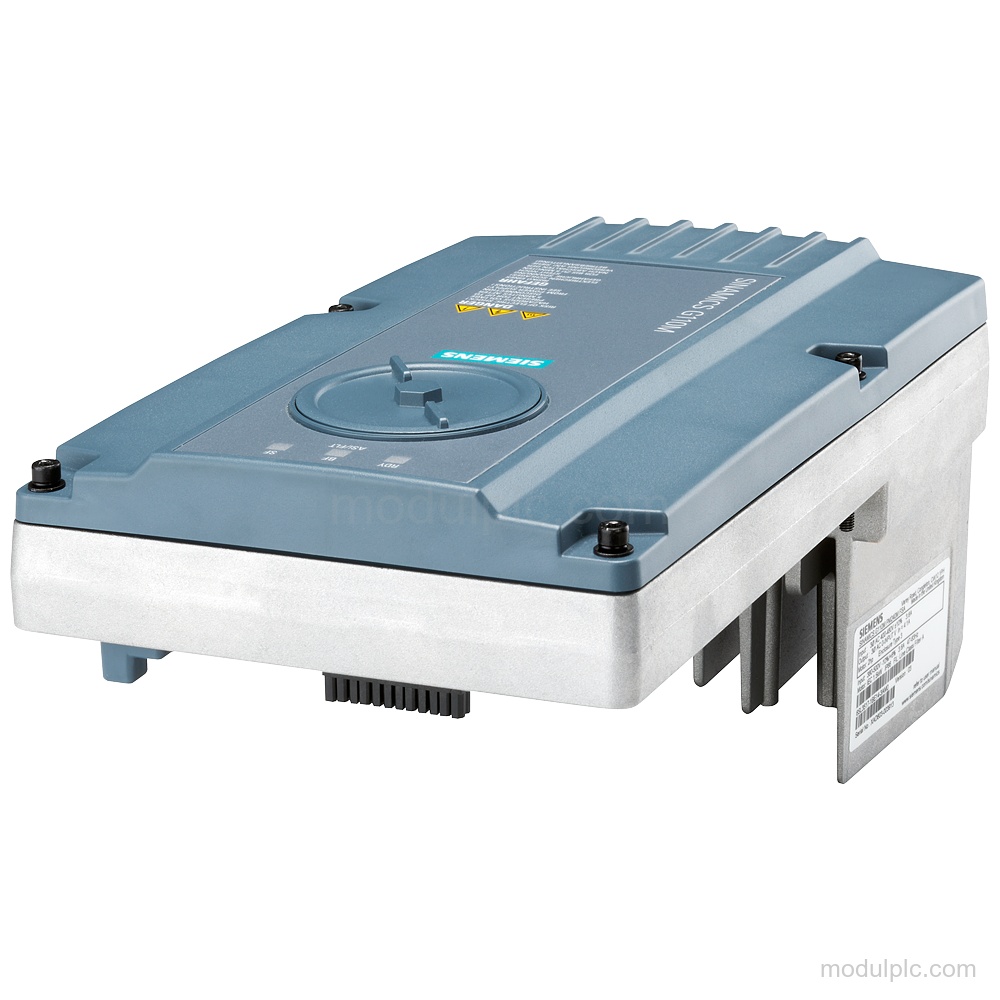

| Product type | SINAMICS G110M Power Module spare part |
| Filter | Integrated Class A filter |
| Protection | IP65 |
| Supply | 380-480 V 3AC +10/-10%, 47-63 Hz |
| High-overload power | 0.75 kW at 200% for 3 s, 150% for 57 s, and 100% for 240 s |
| Ambient temperature | -10 to +55 °C |
| Card slot | SD/MMC card slot |
| Mounting and configuration | FSA, without Control Unit |
Key Features
- Power module: SINAMICS G110M Power Module spare part with integrated Class A filter.
- Protection and supply: IP65 protection; supply: 380-480 V 3AC +10/-10%, 47-63 Hz.
- High overload: 0.75 kW at 200% for 3 s, 150% for 57 s, and 100% for 240 s.
- Ambient temperature: Ambient temperature: -10 to +55 °C.
- Installation and connection: FSA; SD/MMC card slot; without Control Unit. Dimensions: 135 x 161 x 270 mm (H x W x D).
Frequently Asked Questions
1. What is the 6SL3517-1BE12-3AM0?
It is a SINAMICS G110M Power Module spare part with an integrated Class A filter and IP65 protection.
2. What supply does this Power Module use?
Supply is 380-480 V 3AC +10/-10% at 47-63 Hz.
3. What is the high-overload rating?
The rating is 0.75 kW at 200% for 3 s, 150% for 57 s, and 100% for 240 s.
4. What is included in the configuration?
The configuration is FSA and is without Control Unit. It has an SD/MMC card slot.
