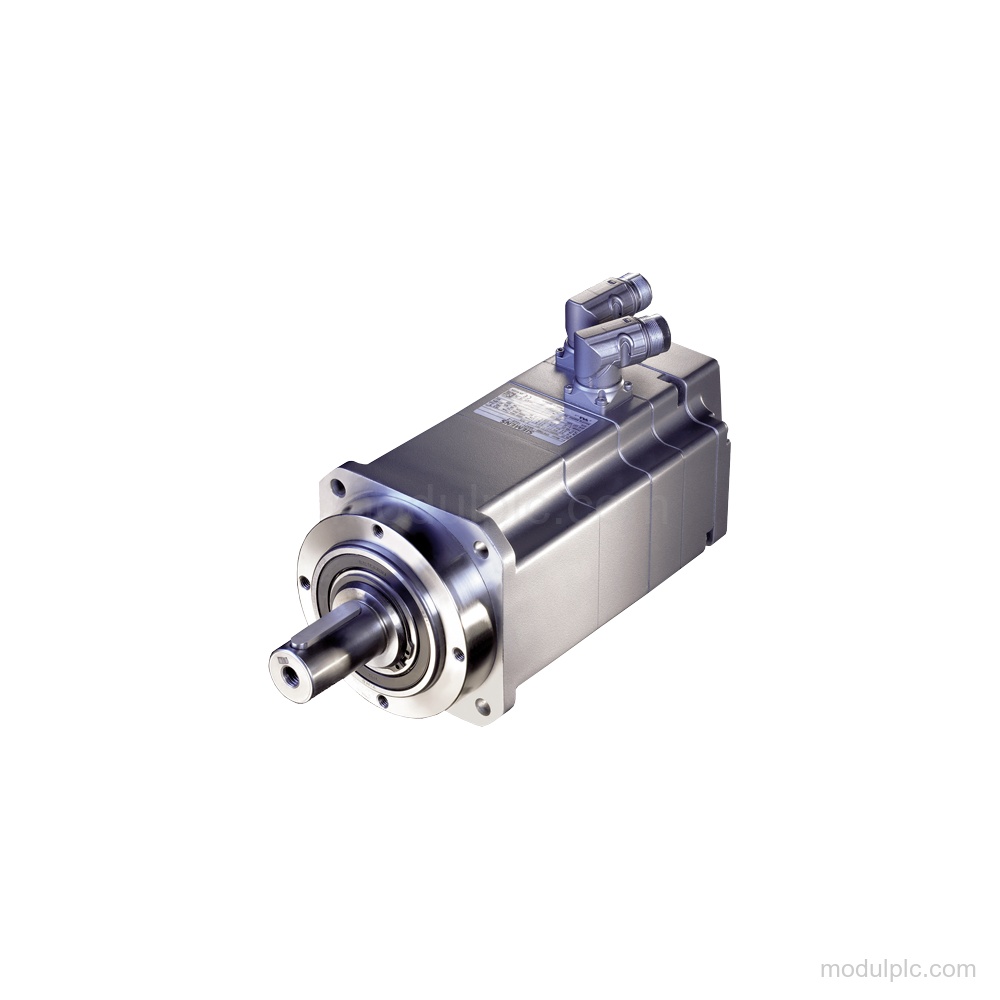

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Motor type | Synchronous servo motor, SIMOTICS S 1FK7 Compact |
| Torque | 0.35 Nm (100K) |
| Power | 0.10 kW |
| Speed | 6000 rpm |
| Encoder | Absolute encoder 16 S/R (encoder A-16) |
| Cooling | Naturally cooled |
| Protection | IP54 |
| Mounting | IM B5 design (IM V1, IM V3), Flange 1 |
| Connectors | Power/signal connectors, rotatable by 270° |
| Temperature sensor | KTY |
| Configuration | Without holding brake |
Key Features
- Synchronous servo motor: SIMOTICS S 1FK7 Compact motor with 0.35 Nm (100K) torque, 0.10 kW power, and 6000 rpm.
- Absolute encoder: Absolute encoder 16 S/R (encoder A-16).
- Power and signal connectors: Power/signal connectors can be rotated by 270°.
- Naturally cooled: The motor uses natural cooling.
- Mounting and flange: Flange 1 with IM B5 design (IM V1, IM V3).
- Protection and configuration: IP54 degree of protection, RAL7016 paint finish, KTY temperature sensor, tolerance N, and no holding brake.
Frequently Asked Questions
1. What motor is Siemens 1FK7015-5AK71-1JA3?
It is a SIMOTICS S 1FK7 Compact synchronous servo motor with 0.35 Nm (100K) torque, 0.10 kW power, and 6000 rpm.
2. Which encoder does this motor have?
It has an absolute encoder 16 S/R (encoder A-16).
3. What connectors and mounting design does it use?
It has power/signal connectors rotatable by 270° and an IM B5 design (IM V1, IM V3) with Flange 1.
4. What protection and cooling does it provide?
It has IP54 degree of protection and natural cooling.
5. Does the configuration include a holding brake?
It is without a holding brake.
