Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | CP 1543SP-1 communications processor |
| Industrial Ethernet interfaces | 1 interface; 2 electrical connections |
| Transfer rate | 10 … 100 Mbit/s |
| Supply | DC 24 V; 19.2 … 28.8 V |
| Power loss | 6 W |
| Open communication connections | 32 maximum by means of T blocks |
| S7 communication connections | 16 maximum |
| VPN connections | 4 maximum |
| Configuration software | STEP 7 Professional V14 (TIA Portal) or higher |
| Mounting | 35 mm DIN-rail mounting |
| Protection class | IP20 |
Applications
- SIMATIC S7-ET 200SP Industrial Ethernet connection: Connects an SIMATIC S7-ET 200SP to Industrial Ethernet.
- Open Industrial Ethernet communication: Provides open IE communication through TCP/IP, ISO-on-TCP, and UDP.
- Secure network communication: Provides firewall and VPN functions using IPsec and SINEMA RC.
Key Features
- Industrial Ethernet communication: Supports open IE communication using TCP/IP, ISO-on-TCP, and UDP, with S7 routing, IP broadcast/multicast, SNMP v1/v3, DHCP, secure email, IPv4/IPv6, and NTP.
- Interface and connections: Has 1 Industrial Ethernet interface with 2 electrical connections via an ET 200SP bus adapter; supported adapter connections include RJ45, FC, and SCRJ with an integrated switch.
- Security functions: Provides a stateful-inspection firewall, IPsec and SINEMA RC VPN connections, service shutdown, physical-port communication blocking, and unauthorized-access logging.

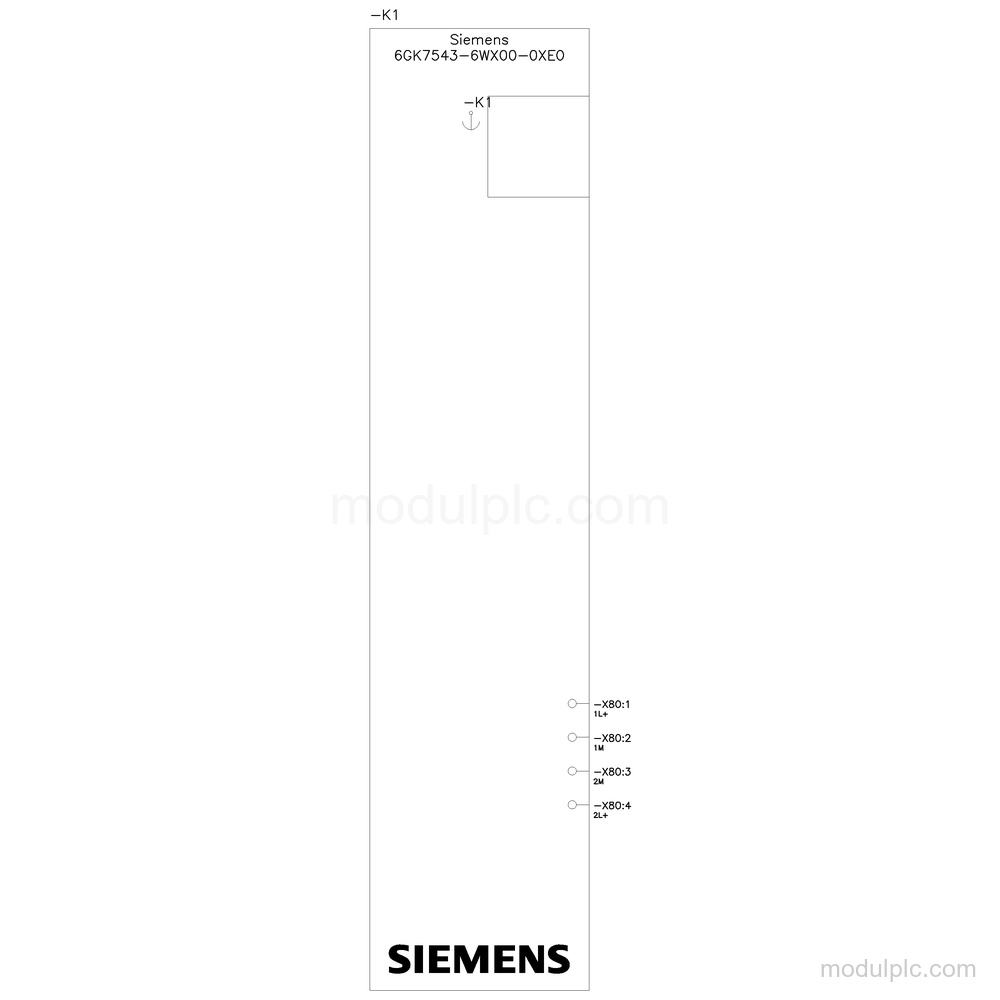

- Electrical data: Uses DC 24 V supply with a supply range of 19.2 … 28.8 V and power loss of 6 W.
- Connection capacity: Supports up to 32 open-communication connections by means of T blocks, 16 S7 communication connections, 32 active connections in multi-protocol mode, and 4 VPN connections.

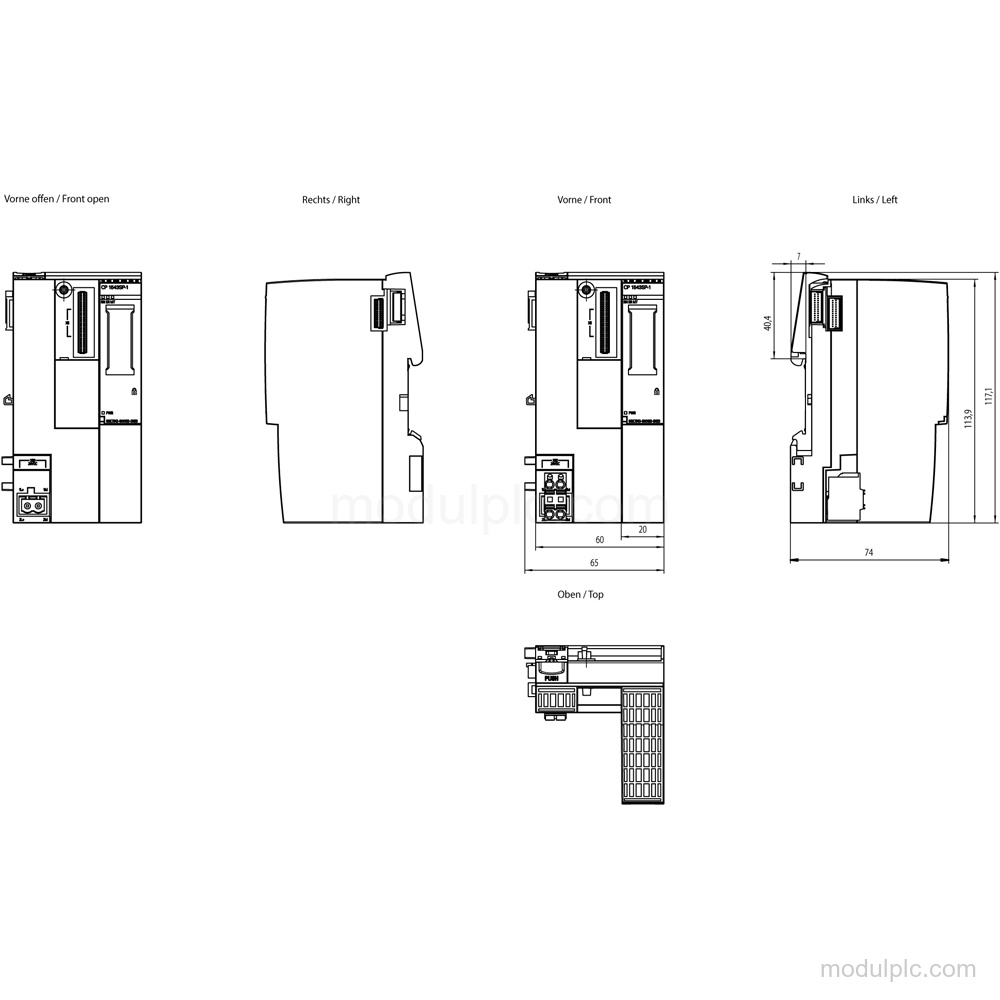

- Installation and enclosure: Supports 35 mm DIN-rail mounting. Dimensions are 60 mm width, 117 mm height, and 74 mm depth; protection class is IP20.
Frequently Asked Questions
1. What is the function of Siemens 6GK7543-6WX00-0XE0?

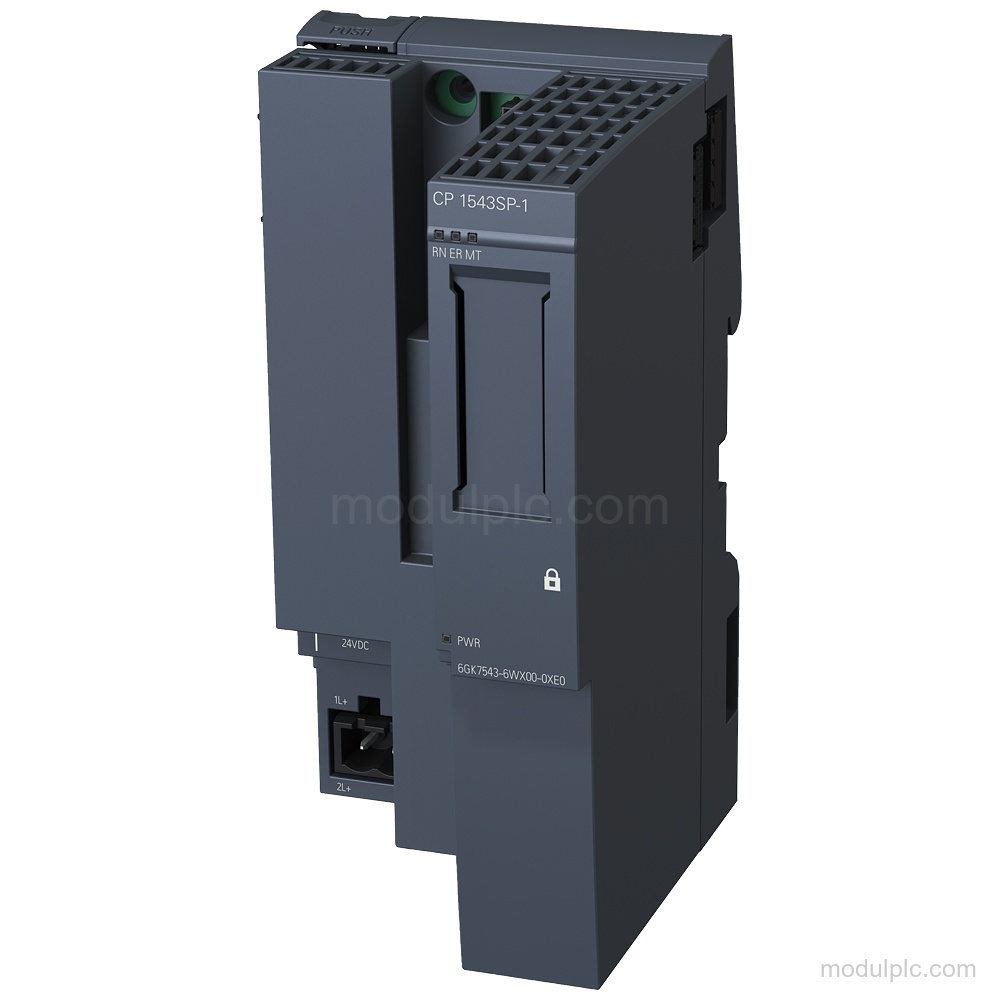

It is a CP 1543SP-1 communications processor for connecting an SIMATIC S7-ET 200SP to Industrial Ethernet.
2. How many Industrial Ethernet interfaces and electrical connections does it have?
It has 1 Industrial Ethernet interface and 2 electrical connections via an ET 200SP bus adapter.
3. Which communication protocols are supported?
It supports TCP/IP, ISO-on-TCP, UDP, SNMP v1/v3, DCP, LLDP, NTP, and secure NTP.
4. What supply and mounting details should be verified?
The supply is DC 24 V, with a range of 19.2 … 28.8 V. Mounting is on a 35 mm DIN rail.
