Product Overview
Technical Summary
| Parameter | Value |
|---|---|

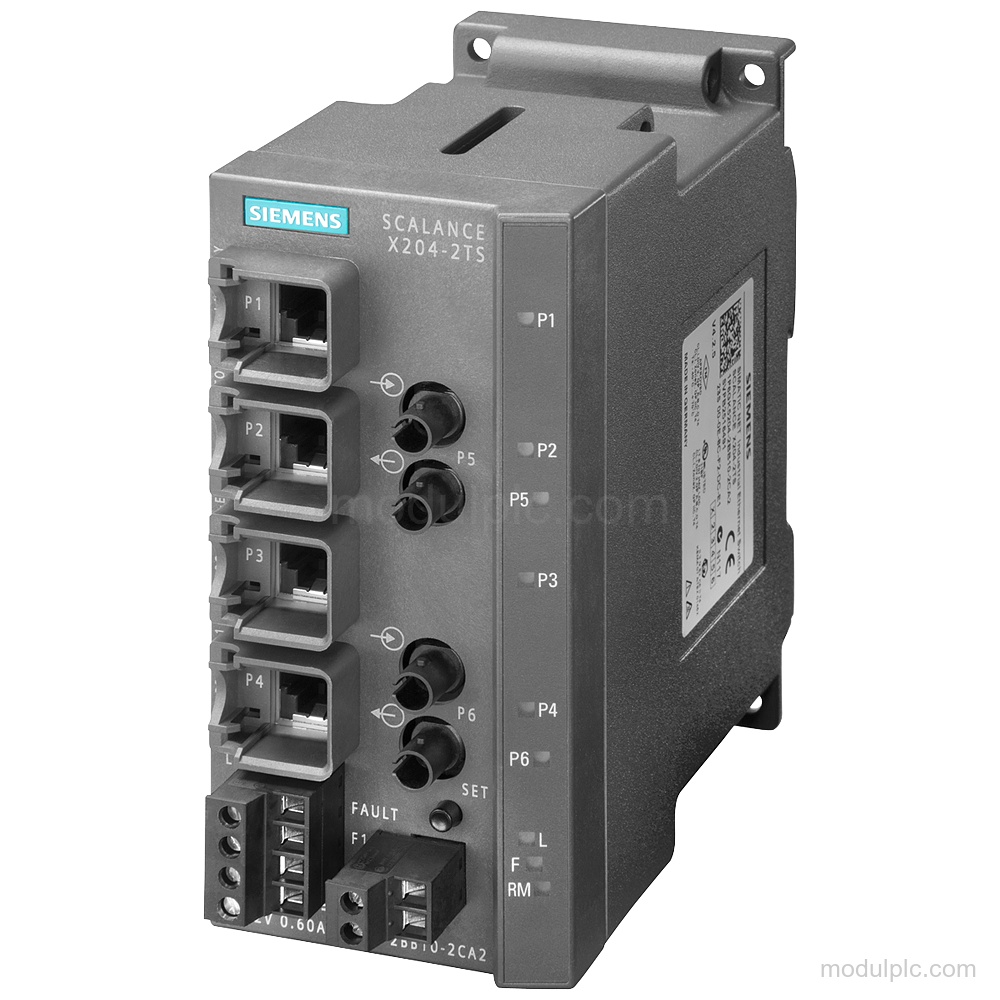

| Network interfaces | 4x 10/100 Mbps RJ45; 2x 100 Mbps multimode ST/BFOC |
| Transfer rates | 10, 100 Mbit/s |
| PROFINET conformity class | B |
| Supply voltage | DC, 12 V rated value |
| Maximum consumed current | 0.6 A |
| Rated power loss | 6.6 W |
| Signaling contact | 24 V rated value; 0.05 A maximum current |
| Protection class | IP20 |
| Mounting | 35 mm DIN rail, wall, or S7-300 rail |
Applications
- Industrial network management: The switch provides web-based management, CLI, MIB support, and configuration with STEP 7.
- PROFINET I/O communication: The switch operates as a PROFINET I/O device and provides PROFINET IO diagnosis.
- Network redundancy: The switch supports MRP with redundancy manager, ring redundancy, HRP with redundancy manager, and PRP operation in a PRP network.
Key Features
- Network interfaces: 4x 10/100 Mbps RJ45 ports and 2x 100 Mbps multimode ST/BFOC ports; transfer rates are 10, 100 Mbit/s.
- Management and diagnostics: Web-based management, CLI, MIB support, port mirroring, LED diagnostics, port diagnostics, and PROFINET IO diagnosis.
- Protocols and functions: Supports PROFINET IO, Telnet, HTTP, HTTPS, TFTP, FTP, DCP, LLDP, SNMP v1/v2/v3, SSH, MRP, HRP, PRP, and SNTP.
- Power and connections: DC supply with a rated value of 12 V, maximum consumed current of 0.6 A, and rated power loss of 6.6 W; redundant voltage supply is supported through a 4-pole terminal block.

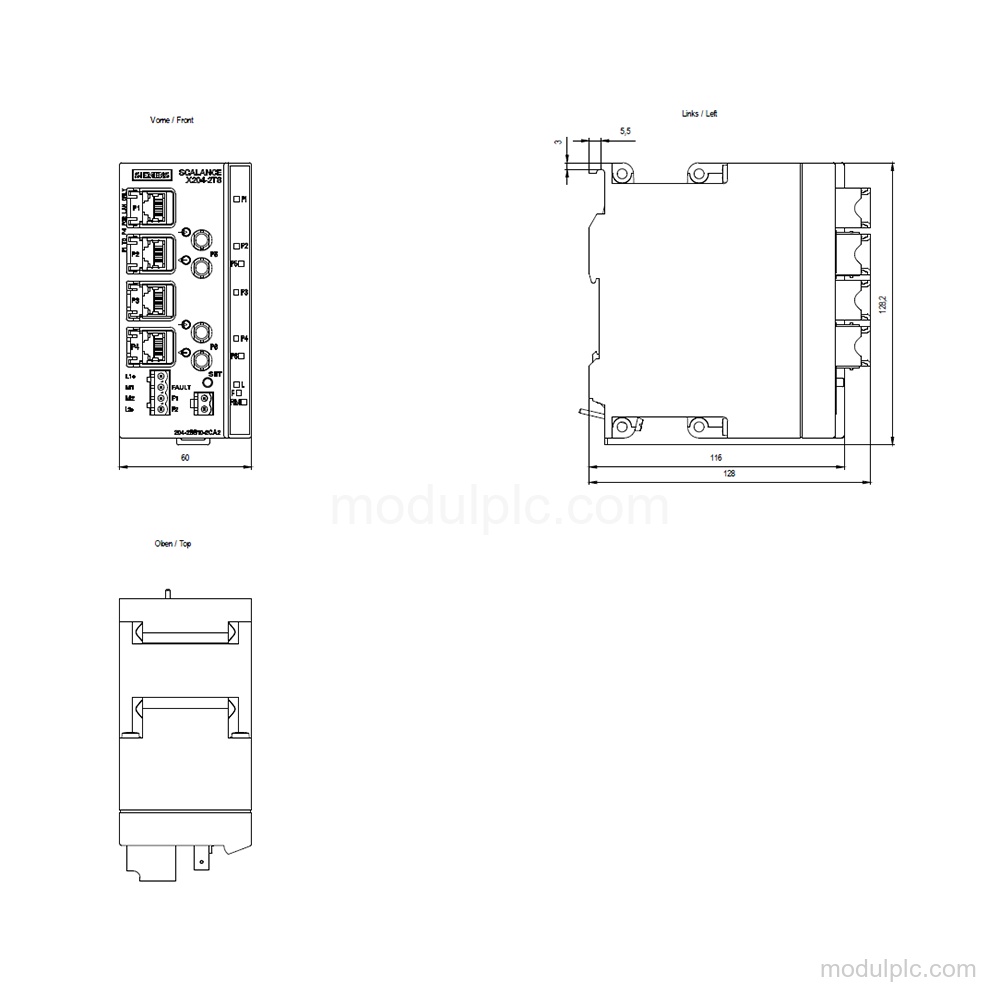

- Mounting and protection: Supports 35 mm DIN-rail, wall, and S7-300 rail mounting. Protection class is IP20; dimensions are 60 mm × 125 mm × 124 mm.
- Signaling and storage: One signaling-contact connection uses a 2-pole terminal block; the signaling contact has 24 V rated voltage and 0.05 A maximum current. C-PLUG is supported and conformal coating is provided.
Frequently Asked Questions
1. Which network interfaces does the 6GK5204-2BB10-2CA2 have?
It has 4x 10/100 Mbps RJ45 ports and 2x 100 Mbps multimode ST/BFOC ports.
2. Which protocols are supported?
Supported protocols include PROFINET IO, Telnet, HTTP, HTTPS, TFTP, FTP, DCP, LLDP, SNMP v1/v2/v3, SSH, MRP, HRP, PRP, and SNTP.
3. What diagnostics and management functions are available?
It has LED diagnostics, port diagnostics, PROFINET IO diagnosis, web-based management, CLI, MIB support, port mirroring, and error statistics.
4. What power and terminal connections does the switch use?
The DC supply has a 12 V rated value, 0.6 A maximum consumed current, and 6.6 W rated power loss. Power supply uses a 4-pole terminal block, and the signaling contact uses a 2-pole terminal block.
