Product Overview
Technical Summary
| Parameter | Value |
|---|---|

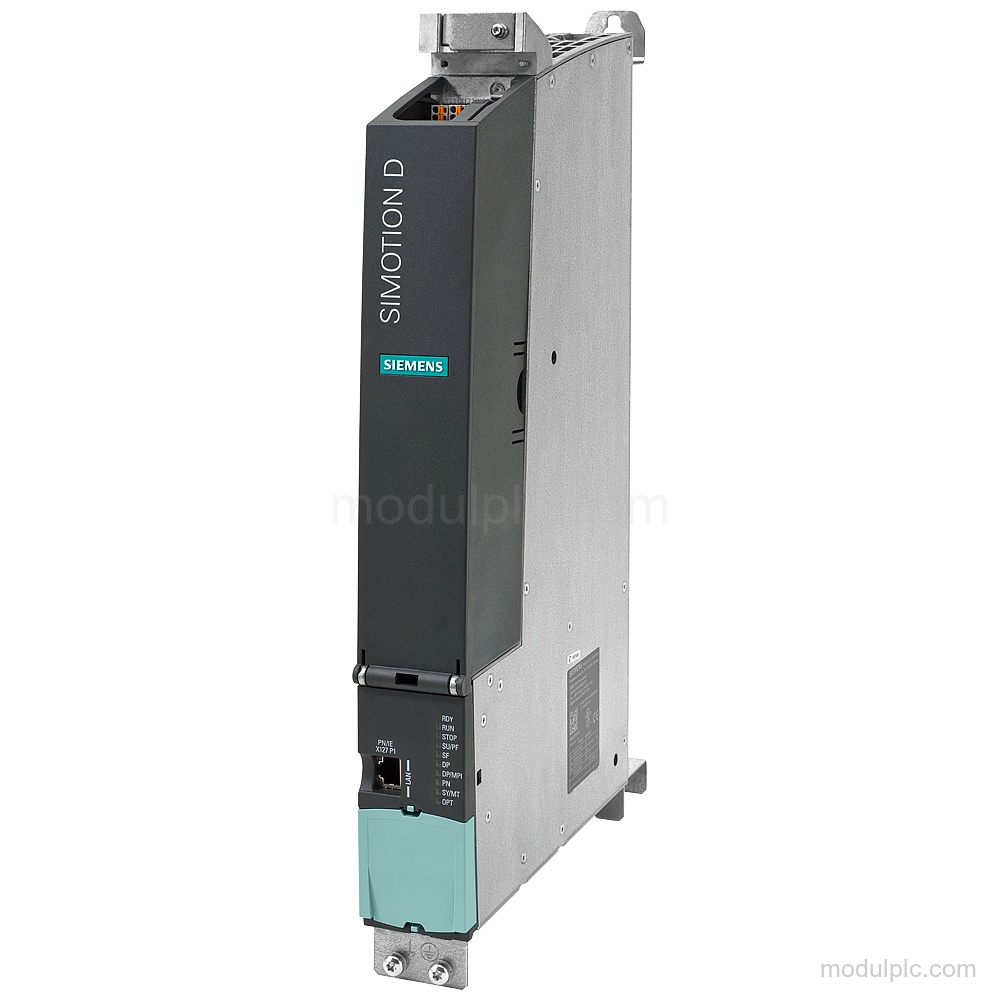

| Controller_type | SIMOTION Drive-based Control Unit D435-2 DP |
| Performance | STANDARD |
| Digital_inputs | 12 DI |
| Digital_inputs_outputs | 16 DI/DO |
| DRIVE-CLiQ_interfaces | 6 DRIVE-CLiQ |
| PROFIBUS_interfaces | 2 PROFIBUS |
| Ethernet_interfaces | 3 Ethernet |
| USB_interfaces | 2 USB |
| Option_slot | 1 option slot incl. dual fan / battery module and battery |
| Net_weight | 3.700 kg |
| Product_lifecycle | Announcement of product phase-out |
Applications
- Programmable motion control: Provides programmable motion-controller functionality.
Key Features
- Programmable motion controller: SIMOTION Drive-based Control Unit D435-2 DP with STANDARD performance.
- Digital inputs: 12 DI.
- Digital inputs/outputs: 16 DI/DO.
- DRIVE-CLiQ interfaces: 6 DRIVE-CLiQ.
- Communication interfaces: 2 PROFIBUS and 3 Ethernet.
- Additional connections: 2 USB and 1 option slot incl. dual fan / battery module and battery.
Frequently Asked Questions
1. What is the function of the 6AU1435-2AA00-0AA0?
It is a SIMOTION Drive-based Control Unit D435-2 DP programmable motion controller with STANDARD performance.
2. How many digital inputs and digital input/output channels does it have?
It has 12 DI and 16 DI/DO.
3. Which communication interfaces are included?
It has 6 DRIVE-CLiQ, 2 PROFIBUS, 3 Ethernet and 2 USB interfaces.
4. What is included in the option slot configuration?
The 1 option slot includes a dual fan / battery module and battery.
5. What lifecycle status should be verified before requesting a quote?
The product lifecycle is Announcement of product phase-out.
