Product Overview
Technical Summary
| Parameter | Value |
|---|---|

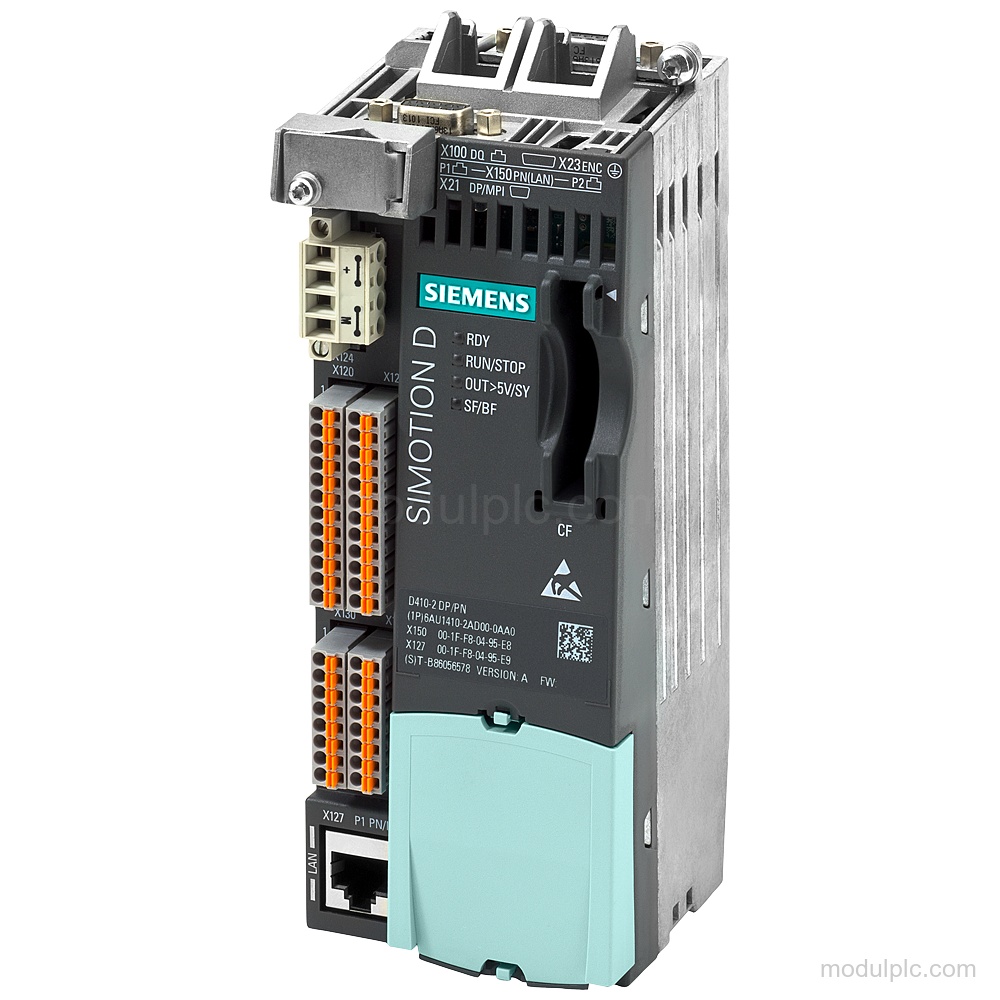

| Product type | SIMOTION D410-2 DP/PN Drive-based Control Unit |
| Motion control | Programmable single-axis motion controller; multi-axis option |
| Digital inputs | 5 DI |
| Combined digital inputs/outputs | 8 DI/DO |
| Fail-safe digital inputs | 3 F-DI |
| Fail-safe digital outputs | 1 F-DO |
| Analog inputs | 1 AI |
| Encoder interfaces | 1 encoder |
| DRIVE-CLiQ interfaces | 1 DRIVE-CLiQ |
| PROFIBUS interfaces | 1 PROFIBUS |
| PROFINET ports | 2 PROFINET ports |
| Ethernet interfaces | 1 Ethernet |
Applications
- Single-axis motion control: Provides programmable single-axis motion control.
- Multi-axis motion control: Supports a multi-axis option.
Key Features
- Motion control: Programmable single-axis motion controller with a multi-axis option.
- Digital and analog I/O: Has 5 DI, 8 DI/DO, 3 F-DI, 1 F-DO, and 1 AI.
- Encoder interface: Has 1 encoder interface.
- Communication interfaces: Has 1 DRIVE-CLiQ, 1 PROFIBUS, 2 PROFINET ports, and 1 Ethernet interface.
- Required software and firmware: Requires at least SCOUT/firmware V4.3 SP1 HF3.
- Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What motion-control function does the 6AU1410-2AD00-0AA0 provide?
It is a programmable single-axis motion controller with a multi-axis option.
2. How many I/O channels does this control unit have?
It has 5 DI, 8 DI/DO, 3 F-DI, 1 F-DO, and 1 AI.
3. Which communication interfaces are provided?
It has 1 DRIVE-CLiQ, 1 PROFIBUS, 2 PROFINET ports, and 1 Ethernet interface.
4. What software or firmware version is required?
At least SCOUT/firmware V4.3 SP1 HF3 is required.
