Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product designation | adapter for standard rail mounting |
| Display orientation | Display faces towards standard mounting rail |
| Fastening method | Screw and snap-on mounting onto 32 mm and 35 mm DIN rail |
| Suitability for use | 7KM PAC1020 / 7KM PAC3100 / 7KM PAC3120 / 7KM PAC3200 / 7KM PAC3220 / 7KM PAC4200 / 7KM PAC 4220 |
Applications
- Standard rail mounting: Mounting a display-facing adapter onto 32 mm and 35 mm DIN rail.
Key Features
- Standard rail adapter: Product designation: adapter for standard rail mounting.
- Display orientation: The display faces towards the standard mounting rail.
- Cutout dimensions: Cutout width: 92 mm; cutout height: 92 mm.
- DIN rail fastening: Screw and snap-on mounting onto 32 mm and 35 mm DIN rail.

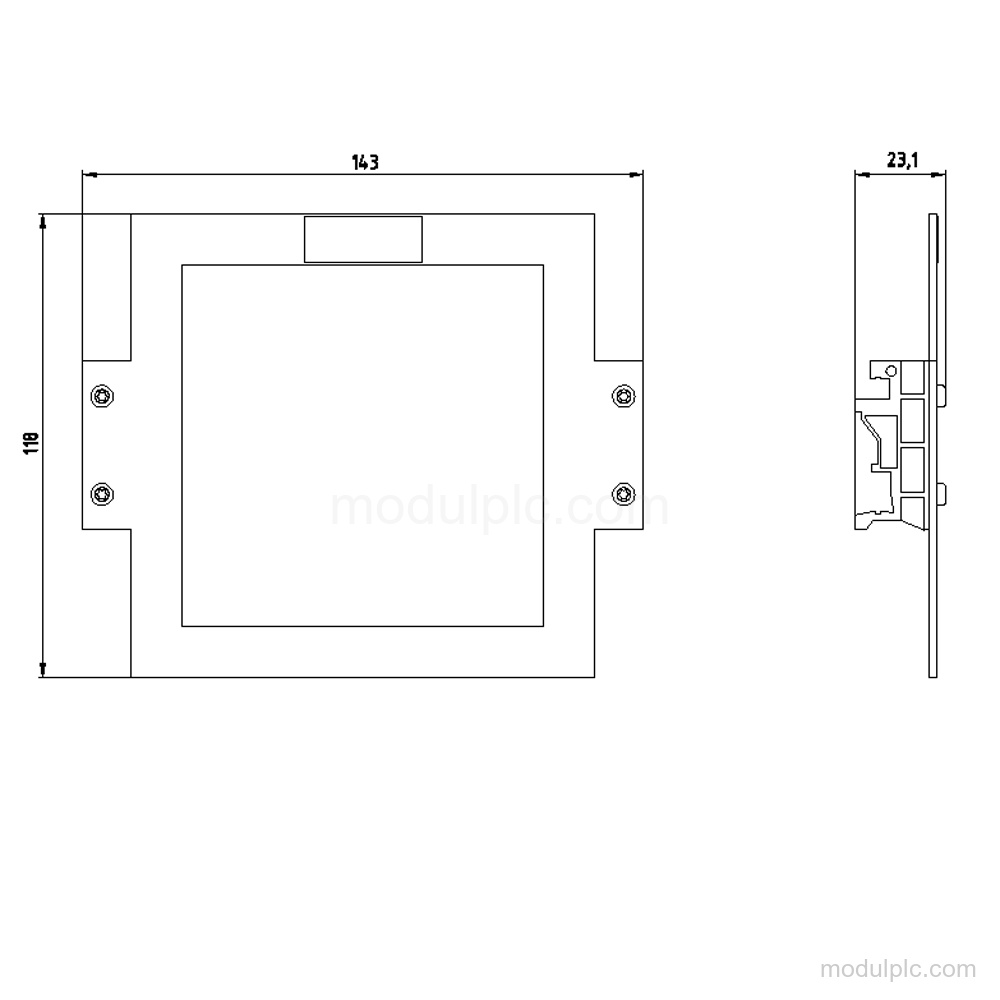

- Mechanical dimensions: Height: 118 mm; width: 143 mm; depth: 23.5 mm.
- Construction and weight: Material: Metal / plastic. Net weight: 141 g.
Frequently Asked Questions
1. What is the Siemens 7KM9900-0YA00-0AA0 used for?
It is an adapter for standard rail mounting with the display facing towards the standard mounting rail.
2. What cutout does the adapter require?
The cutout width is 92 mm and the cutout height is 92 mm.
3. How is the adapter mounted?
It uses screw and snap-on mounting onto 32 mm and 35 mm DIN rail.
4. Which models is the adapter suitable for?
It is suitable for 7KM PAC1020 / 7KM PAC3100 / 7KM PAC3120 / 7KM PAC3200 / 7KM PAC3220 / 7KM PAC4200 / 7KM PAC 4220.
