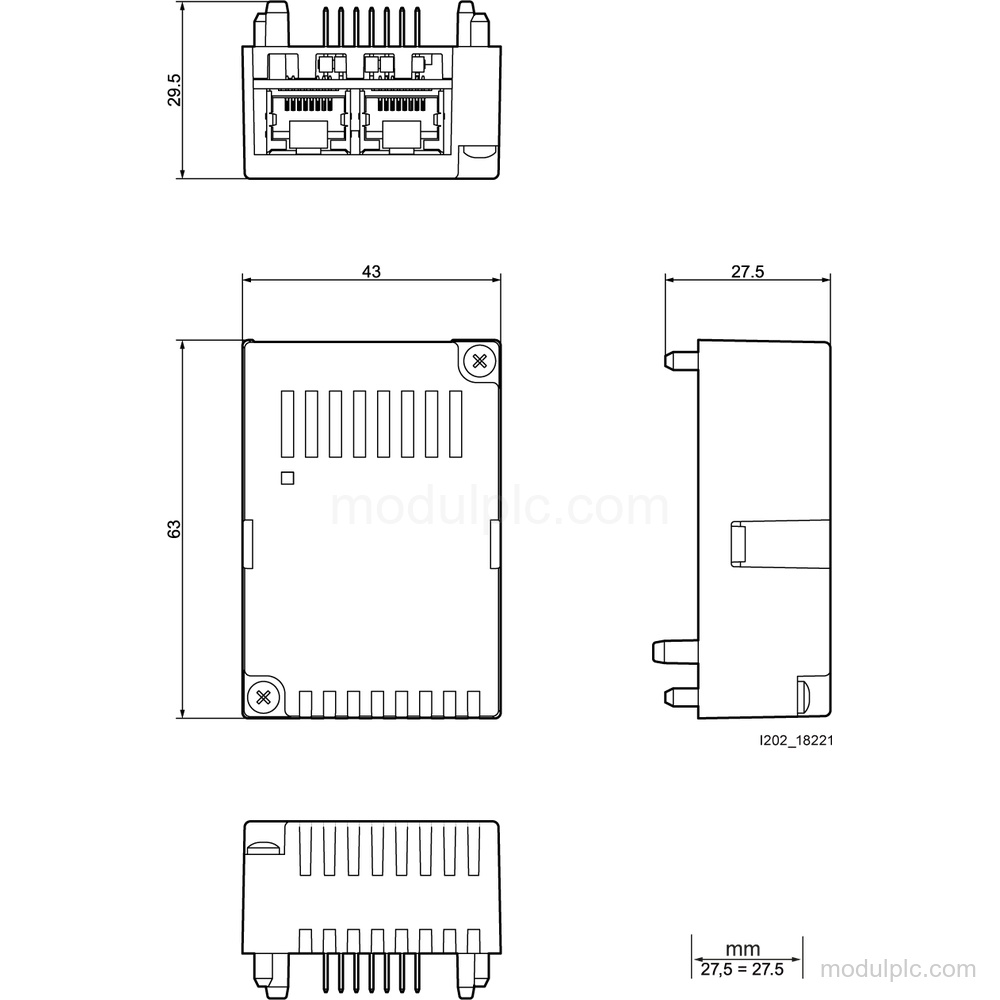

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product designation | Switched Ethernet PROFINET expansion module |
| PROFINET interface ports | 2 ports (switch) |
| RJ45 transmission rate | PROFINET with 100 Mbps |
| PROFINET update time | 500 μs, 1 ms, 2 ms, 4 ms for IRT |
| Supported open IE protocols | TCP/IP, SNMP, LLDP |
| Electrical connection | 2 x RJ45 socket |
| Supply | via PAC 3200 / PAC3220 / PAC4200 / COM100 / 800 |
| Fastening method | pluggable |
| Protection class | IP20 |
| Required software version | ≥ STEP 7 V16 |
Applications
- PROFINET IO device communication: The module operates as a PROFINET IO device and supports PROFINET communication.
- Open IE communication: The module supports open IE communication through TCP/IP, SNMP, and LLDP.
- Media redundancy communication: The module supports PROFINET MRP for media redundancy.
Key Features
- PROFINET communication: Supports PROFINET IO, IRT, PROFINET MRP, PROFIenergy, open IE communication, and PROFINET system redundancy.
- Two switched ports: The PROFINET interface has 2 ports with an integrated switch.
- RJ45 transmission: The RJ45 interface supports PROFINET with 100 Mbps and includes autonegotiation and autocrossover.
- Open IE protocols: Open IE communication supports TCP/IP, SNMP, and LLDP.
- PROFINET update times: IRT update times at the PROFINET IO device are 500 μs, 1 ms, 2 ms, and 4 ms.
- Pluggable installation: The module uses 2 RJ45 sockets, has a pluggable fastening method, and provides IP20 protection.
Frequently Asked Questions
1. What protocols does the 7KM9300-0AE02-0AA0 support?
It supports PROFINET IO, PROFINET MRP, PROFIenergy, open IE communication, PROFINET system redundancy, TCP/IP, SNMP, and LLDP.
2. How many PROFINET ports does the module have?
It has 2 switched PROFINET ports with an integrated switch.
3. What connector and transmission rate are provided?
The module has 2 RJ45 sockets and supports PROFINET with 100 Mbps.
4. What are the IRT update times?
The supported IRT update times at the PROFINET IO device are 500 μs, 1 ms, 2 ms, and 4 ms.
5. How is the module installed and supplied?
It has a pluggable fastening method and is supplied via PAC 3200, PAC3220, PAC4200, COM100, or 800.
