Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP bus module |
| Supported components | PS and IM153 |
| Operating function | Pulling and plugging during RUN operating mode |
| Included component | Bus module cover |
Applications
- Pulling and plugging during RUN operation: Supports the pulling and plugging function during RUN operating mode.
Key Features

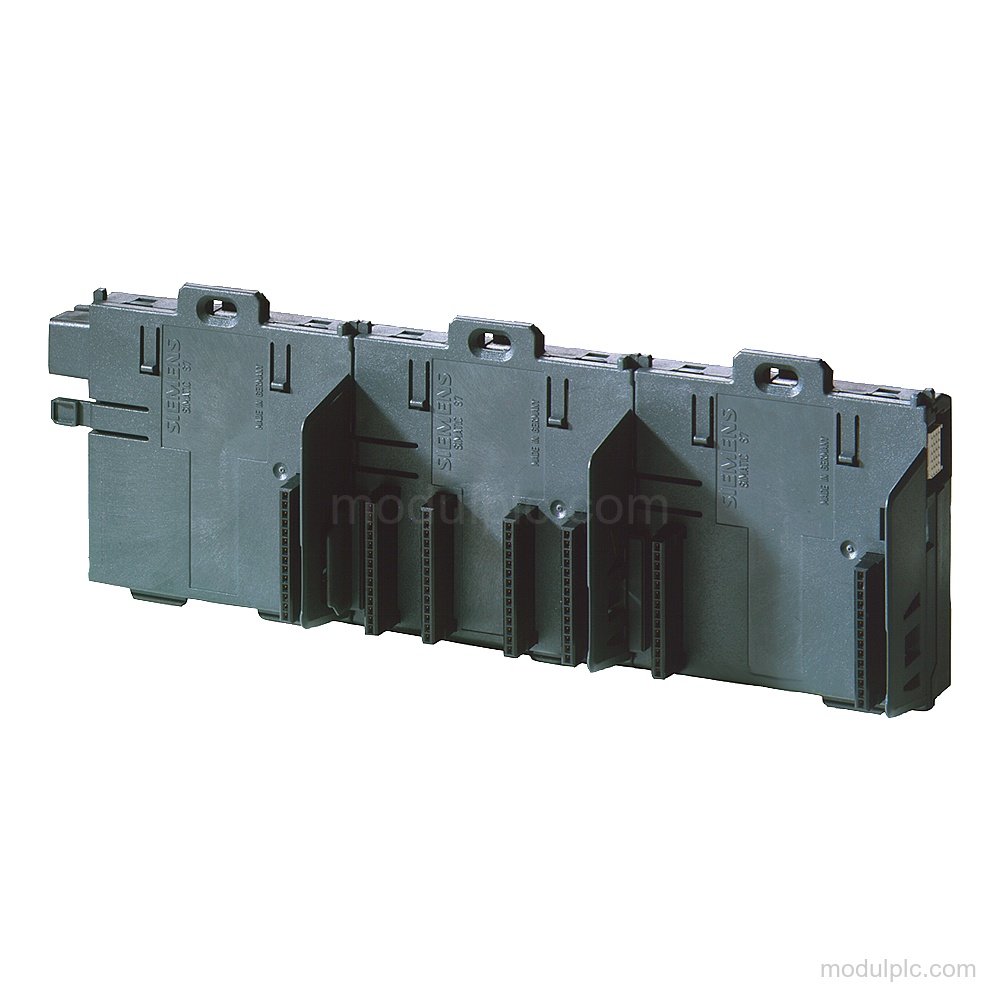

- ET200M bus module: SIMATIC DP bus module for holding a PS and an IM153.
- Pulling and plugging during RUN: Supports pulling and plugging during RUN operating mode.
- Bus module cover: Includes a bus module cover.

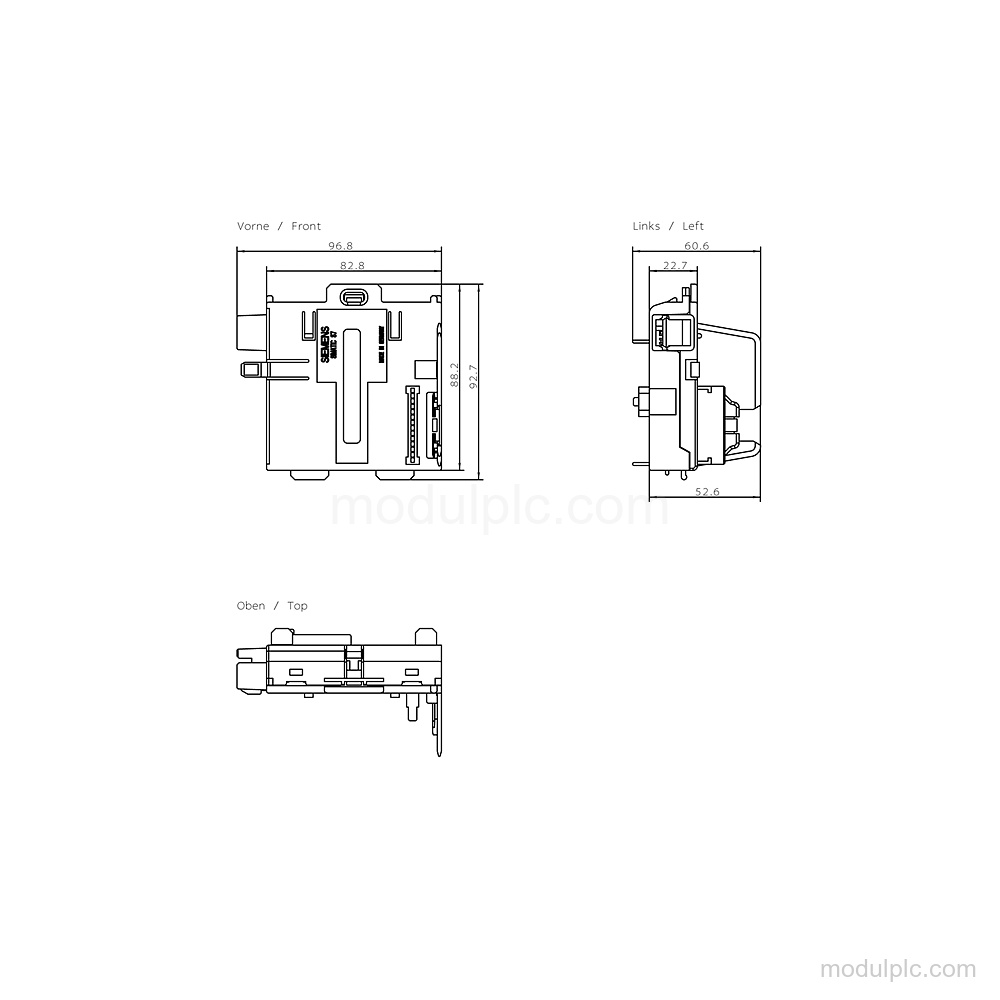

- Compact dimensions: Dimensions: 97 mm width, 92 mm height, and 30 mm depth.
- Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What is Siemens 6ES7195-7HA00-0XA0?
It is a SIMATIC DP bus module for ET200M that holds a PS and an IM153.
2. Does the module support pulling and plugging during RUN operation?
Yes. It supports pulling and plugging during RUN operating mode.
3. What dimensions should be verified for this module?
The dimensions are 97 mm width, 92 mm height, and 30 mm depth.
4. Is a bus module cover included?
Yes. The module includes a bus module cover.
